Flexo Printer Slotter

Flexo Printer Slotter, Flexo Printer Slotter, Flexo Printer, Flexo printer, Flexo Printer Die Cutter, Printer Slotter, Printer Slotter, Flexo Printer Slotter, Flexo Printer Slotter, Aotomatic Flexo Printer Slotter, Automatic Flexo Printer Slotter[08-12-17 22:30:53]

The Flexo printer slotter is utilised for printing, creasing, trimming, slotting and corner cutting of the sheet simultaneously. The three sections of the machine-feeding, printing and creasing-slotting can be separated from each other for easy access to the operator. It's an ideal choice for printing or packaging industry.


323B\C high speed 3 color flexo printer slotter

Main parameters of 323B high speed 3 color flexo printer slotter

Item
Unit
Contents
Feed paper area
mm
2600×1500
Effective printing area
mm
2300×1500
Min.process size
mm
500×400
Thiness of cardboard
mm
1.5--16
Max.speed
sheets/min
108
Economy speed
sheets/min
80
Elecdtrical power
kw
11
Printing precision
mm
±0.75
Slotting precision
mm
±1.5
Weight
Kg
22000

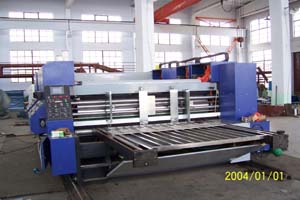

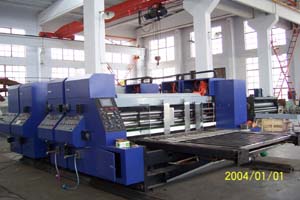

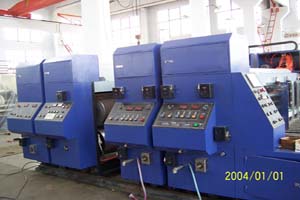

Reference picture for 323B/C high speed 3 color flexo printer slotter


Standard figuration of 323B high speed 3 color flexo printer slotter

Paper Feeding Unit:
Adopting vacuum adsorption automatic scraping paper feeding system.
Elastic rubber roller feeding ensures No harmful for corrugation intensity.
Dust remover(upper) system .It can clean up dust on the surface of cardboard.
Continuous paper feeding .Pneumatic locking system. Side baffle and back baffle position are regulated by electric device.
Printing Unit:
Standard configuration: metal net stripe roller with 220 meshes.(180, 200meshes is for option)Phase and left-right movement of printing mould are regulated automatically.which can be displayed on screen directly.it can be regulated by touchable screen or by buttons.
Dividing position fix device.ensures each printing mould relative position keep unchanged.electric drive dividing part,Pneumatic lock.
Printing roller adopts both adhesive printing and hanging printing.
Main parts of drive adopts no bond connection collapsible.
Slotting Unit :
Phase and left-right movement of slotting disc are regulated by Digital controller. Which can be regulated and displayed on the touchable screen directly. It can be regulated by by buttons too. The right-left movemrnt of slotting disc can be regulated correlatively. The up slotting disc set and up scorering wheel can be regulated correlatively. The regulation size can be read from rulermark directly.
Dividing position fixing device.ensures each unit relative position keep unchanged when it is separate and close.
Opening slot place is adjusted by united electricity power.
Main parts of drive adopts no bond connection collapsible.
Machine Set:
Paper feeding unit, Printing Unit, Slotting Unit all adopts automatic spray lubrication system. It adopts double oil pump balance system.
Automatic Stack Unit :
Automatic counting system. Rise and fall of stack arm is controlled by pneumatic. Stack arm rise and fall is regulated automatically according to cardboard feeding quantity. The motor is speed regulation motor.
Computer Control System:
Main control system adopts touchable screen. Operation is easy and direct
Return-to-zero and memory erase function. Each part phase return-to-zero and preset and horizontal position return-to-zero. It ensures error can be compensated automaticlly in process of printing, die-cutting and solotting if there is error in first cardboard.
Main motor is VVVF motor. Operation stable. Power saving.
Prefeed. The unique prefeed function increases printing speed greatly.
Paper feed and printing process orderly. Enhances printing quality(including the last paper) greatly.
Die cutting serve move and hydraulic pneumatic move.
Slotting disc up disc and up scorer wheel horizontal move relatively regulation.
Parameters correction. Basic parameters correction. Makes maintainence and regulation easy.
Slotting disc Protection device.
Multi-points control system.
PLC control system. Each unit relative phase, horizontal movement, flute depth, carton height can be controlled and displayed.
Option :
Die Cutting Unit: ( it can be assembled to the printer slotter)
Phase and left-right movement of die mould is regulated by Digital controller. Which can be regulated and displayed on the touchable screen directly. The die mould phase can be regulated by buttons too.
Dividing position fixing device.ensures each unit relative position keep unchanged when separate and close.
Electric drive dividing part, Pneumatic lock..Die cutting rubber roller adopts serve movement and hydraulic pneumatic horizontal movement system. It also is equiped with rubber cushion self-repair system. The rubber cushion can be self-prepair many times. After repairing, the diameter of rubber roller is input computer system. Which makes cumpter calculate and follow printing speed. It ensures cardboard die cutting more neatly. At the same time, it keep die cutter from being harmed. Main parts of drive adopts no bond connection collapsible.


Main parameters of 323C high speed 3 color flexo printer slotter

Item
Unit
Contents
Feed paper area
mm
2600×1500
Effective printing area
mm
2300×1500
Min.process size
mm
500×400
Thiness of cardboard
mm
6
Max.speed
sheets/min
108
Economy speed
sheets/min
80
Elecdtrical power
kw
30
Printing precision
mm
±0.75
Slotting precision
mm
±1.5
Weight
Kg
28000


Standard figuration of 323C high speed 3 color flexo printer slotter

Paper Feeding Unit:
Adopting vacuum adsorption automatic scraping paper feeding system.
Elastic rubber roller feeding ensures No harmful for corrugation intensity.
Dust remover(upper) system .It can clean up dust on the surface of cardboard
Continuous paper feeding .Pneumatic locking system. .Side baffle and back baffle position are regulated by electric digital device.
Printing Unit:
Standard configuration: metal net stripe roller with 220 meshes.(180, 200meshes is for option)
Phase and left-right movement of printing mould are regulated by electric digital automatically.which can be displayed on screen directly.it can be regulated by touchable screen or by buttons.
Dividing position fix device.ensures each printing mould relative position keep unchanged.
electric drive dividing part,Pneumatic lock.
Printing roller adopts both adhesive printing and hanging printing.
Main parts of drive adopts no bond connection collapsible.
Slotting Unit :
Phase and left-right movement of slotting disc are regulated by Digital controller. Which can be regulated and displayed on the touchable screen directly. It can be regulated by by buttons too. The right-left movemrnt of slotting disc can be regulated correlatively. The up and down slotting disc set and up and down scorering wheel can be regulated correlatively. The regulation size can be read from rulermark directly.
Dividing position fixing device.ensures each unit relative position keep unchanged when it is separate and close.
Opening slot place is adjusted by united electricity power.
Main parts of drive adopts no bond connection collapsible.
Machine Set:
Paper feeding unit, Printing Unit, Slotting Unit all adopts automatic spray lubrication system. It adopts double oil pump balance system..
Automatic Stack Unit :
Automatic counting system. Rise and fall of stack arm is controlled by pneumatic. Stack arm rise and fall is regulated automatically according to cardboard feeding quantity. The motor is speed regulation motor.
Computer Control System:
More than 90% electric devices of the machine are made by international famous manufacturers. FP E PC-link network, double 10.4 inch color touchable screen( man-machine interface). 3.7 ich LCD screen.
Machine size computer regulation system. Input order specification directly( or iuput previous specification from memory
to computer). The computer will regulate each unit of the maschine directly.
Return-to-zero and memory erase and preset function. Printing and die cutting phase return-to-zero and prese. horizontal position return-to-zero and centering. It ensures printing, die cutting and slotting be inked and shaped in first piece of cardboard. And in second piece being regulated in correct position. error can be compensated automaticlly in process of printing, die-cutting and solotting .
Main motor is VVVF motor. Operation stable. Power saving. The regulation time is short and precise is high for printing, die cutting and slotting.
Prefeed. The unique prefeed function increases printing speed up to 50%.
Automatic inking function. The first piece and last piece of cardboard is inked clearly.
Slotting disc horizontal relative regulation. Slotting disc and paper feeding baffle connect automatically. Edge triming or no edge triming relative regulation. Feeding baffle is regulated to correct position automatically.
Parameters correction. Basic parameters correction. Makes maintainence and regulation easy.
Slotting disc horizontal move and phase in time Protection device. Disc withdraws in process of return-to-zero and automatic regulation. It protects discs and makes discs back to pistion after up and down discs is regulated automatically.
Seamless expansion printing and die cutting unit system. Ink monitoring, multi points control, speed 60, 80, 100, 120 cruise.
Die cutting unit :
Phase and left-right movement of die mould is regulated by Digital controller. Which can be regulated and displayed on the touchable screen directly. The die mould phase can be regulated by buttons too.
Dividing position fixing device.ensures each unit relative position keep unchanged when separate and close.
Electric drive dividing part, Pneumatic lock..
Die cutting rubber roller adopts serve movement and hydraulic pneumatic horizontal movement system. It also is equiped with rubber cushion self-repair system. The rubber cushion can be self-prepair many times. After repairing, the diameter of rubber roller is input computer system. Which makes cumpter calculate and follow printing speed. It ensures cardboard die cutting more neatly. At the same time, it keep die cutter from being harmed.
Main parts of drive adopts no bond connection collapsible.


After saling flexo printer slotter, if necessary, We will send one or two engineers to set up and commissioning of the flexo printer slotter until it running in normal state. Druing the time your workers who will operate the flexo printer slotter will be trained.
