Rotogravure printing Press
Rotogravure Printing Press[08-12-02 22:36:31]
|
Rotogravure ( roto or gravure for short) is a type of intaglio printing process, in that it involves engraving the image onto an image carrier . In gravure printing, the image is engraved onto a copper cylinder and printed by a rotary printing press . Rotary gravure presses are the fastest and widest presses in operation, printing everything from narrow labels to 12-feet-wide rolls of vinyl flooring. It can be widely used in commercial printing of magazines, postcards, and corrugated (cardboard) product packaging.
Data below are based on our previous successful projects, we can adjust the specification according to your requirements. |
|
Computerize Color Register Rotogravure Printing Press

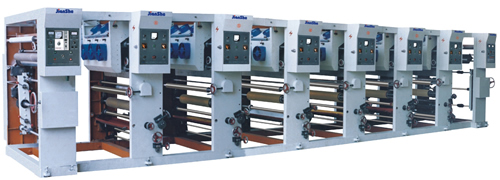

ASY-A Rotogravure Press
 |
 |
Application: This rotogravure press is suitable for printing roll plastic film, non-woven cloth, thin leather, paper, aluminum foil, cloth and various soft packages with excellent performance and it is a kind of ideal printing equipment for wine box, shoe bag, milk film and vest bag.
Technical Data
Type ASY-A-6600 ASY-A-6800 ASY-A-61000
Effective Printing Width 600mm 800mm 1000mm
Max.Width of Web 620mm 820mm 1020mm
Max. Printing Speed 10～60m/min 10～60m/min 10～60m/min
Max. Diameter of Unwind/Rewind ф600mm ф600mm ф600mm
Diameter of Printing Cylinder ф70～ф270mm ф70～ф270mm ф70～ф270mm
Accuracy of Registration ±0.2mm ±0.2mm ±0.2mm
Heating Power of Oven 14.4kw 19.2kw 24kw
Total Power 22Kw 27 Kw 32Kw
Weight of Machine 6000kg 6500 kg 7000 kg
Overall Dimension 8100×1900×1800mm 8100×2100×1800mm 8100×2300×1800mm

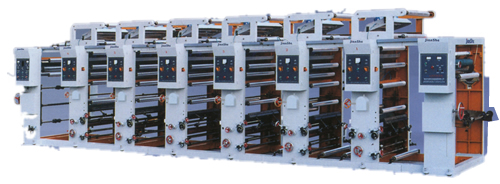

ASY-B Rotogravure Press
 |
 |
Application: This rotogravure press is suitable for printing roll plastic film, non-woven cloth, thin leather, paper, aluminum foil, cloth and various soft packages with excellent performance and it is a kind of ideal printing equipment for wine box, shoe bag, milk film and vest bag.
Technical Data
Type ASY-B-6600 ASY-B-6800 ASY-B-61000
Effective Printing Width 600mm 800mm 1000mm
Max.Width of Web 620mm 820mm 1020mm
Max. Printing Speed 10～60m/min 10～60m/min 10～60m/min
Max. Diameter of Unwind/Rewind ф600mm ф600mm ф600mm
Diameter of Printing Cylinder ф70～ф390mm ф70～ф390mm ф70～ф390mm
Accuracy of Registration ±0.2mm ±0.2mm ±0.2mm
Heating Power of Oven 21.6kw 28.8kw 36kw
Total Power 29.2Kw 36.6 Kw 44Kw
Weight of Machine 6500kg 7000 kg 7500 kg
Overall Dimension 8100×1900×2400mm 8100×2100×2400mm 8100×2300×2400mm

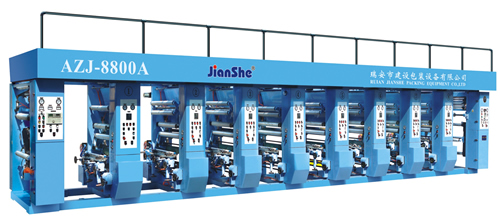

AZJ-A series Computerize Color Register Rotogravure Press
 |
 |
Application: This rotogravure press is suitable for multi-color once-through continuous printing for
such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil
and paper, etc.
Technical Data
Type AZJ-8800A
Effective Printing Width 800mm
Max. Width of Web 850mm
Max. Printing Speed 80～100m/min
Max. Mechanical Speed 120 m/min
Max. Diameter of Unwind/Rewind ф600mm
Inside Diameter of Roll Core ф76mm
Diameter of Printing Cylinder ф120～ф300mm
Accuracy of Computer Registration ±0.2mm (whole Machine)
Tension Control Range 0～25kg/Full Width
Heating Power of Oven 72Kw
Total Power 86Kw
Weight of Machine 18000kg
Overall Dimension L12600×W2600×H2400mm

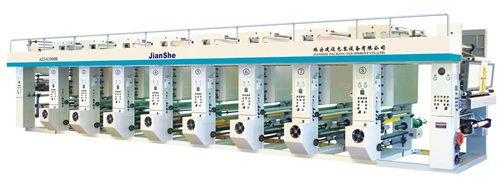

AZJ-B series Computerize Color Register Rotogravure Press
 |
 |
AZJ-B series Computerize Color Register Rotogravure Press Application: This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper
Technical Data
Type AZJ-81000B
Effective Printing Width 1000mm
Max. Width of Web 1050mm
Max. Printing Speed 100～120m/min
Max. Mechanical Speed 140m/min
Max. Diameter of Unwind/Rewind ф600mm
Inside Diameter of Roll Core ф76mm
Diameter of Printing Cylinder ф120～ф300mm
Accuracy of Computer Registration ±0.2mm (Whole Machine)
Tension Control Range 0～25kg/Full Width
Heating Power of Oven 80kw
Total Power 108kw
Weight of Machine 25000kg
Overall Dimension L13000×W28600×H2500mm

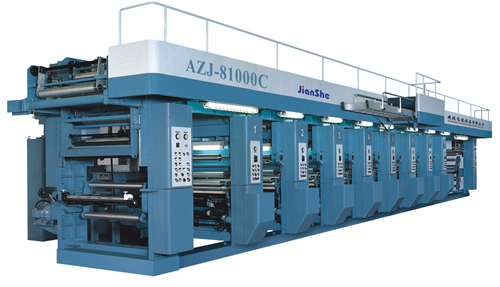

AZJ-C Series High-speed (seven vector motor) Computerize Color Register Rotogravure Press
 |
 |
Application: This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc
Technical Data
Type AZJ-81000C
Effective Printing Width 1000mm
Max. Width of Web 1050mm
Max. Printing Speed 100～140m/min
Max. Mechanical Speed 160m/min
Max. Diameter of Unwind/Rewind ф600mm
Inside Diameter of Roll Core ф76mm
Diameter of Printing Cylinder ф120～ф300mm
Accuracy of Computer Registration ±0.2mm (whole Machine)
Tension Control Range 0～25kg/Full Width
Heating Power of Oven 120Kw
Total Power 164Kw
Weight of Machine 30000kg
Overall Dimension L15000×W3200×H2850mm

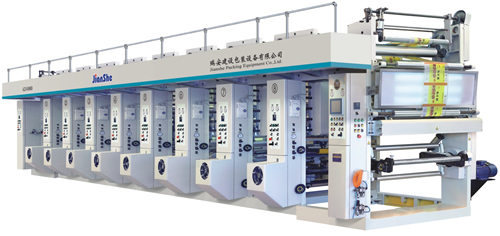

AZJ-D High-speed (seven vector motor) Computerize Color Register Rotogravure Press
 |
 |
Application: This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.
Technical Data
Type AZJ-81000D
Effective Printing Width 1000mm
Max. Width of Web 1050mm
Max. Printing Speed 100～160m/min
Max. Mechanical Speed 180m/min
Max. Diameter of Unwind/Rewind ф600mm
Inside Diameter of Roll Core ф76mm
Diameter of Printing Cylinder ф120～ф300mm
Accuracy of Computer Registration ±0.2mm (Whole Machine)
Tension Control Range 0～25/kgFull Width
Heating Power of Oven 120kw
Total Power 164kw
Weight of Machine 32000kg
Overall Dimension L15000×W3600×H2850mm
After saling rotogravure printing press, if necessary, we will send one or two engineers to set up and commissioning of the Incubator/hatcher until it running in normal state. During the time your workers who will operate the Incubator/hatcher will be trained.
