Car Carrier Trailer

Car Carrier Trailer Manufacturing & Exporting[08-12-17 11:36:43]

  CLIMA Car Carrier Trailer

Featuring of CLIMA Car Carrier Trailer

The car carriers are made by advanced techiniques from both Europe and China.
Unique hydraulic lifting system and suspension system for car carrier trailer
Key parts of the car carrier trailer have been equipped with high quality fitting purchased from those famous brands both at home and aboard.
Safe and reliable driving for car carrier trailer
Easy maintenance and convenience for car carrier trailer.
Large loading capacity from 5-10 different type of cars.

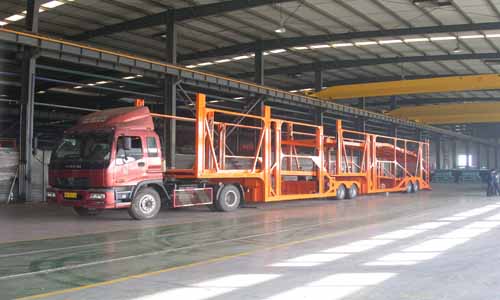

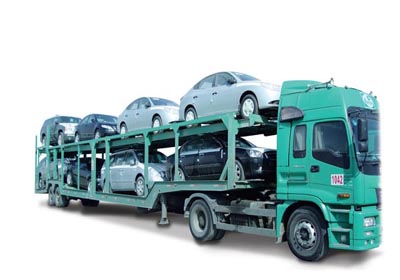

  Car Carrier


CLIMA car carrier trailer series can be classfied to single axle with double tire, double axle with single tire, double axle with double tire; the compartment adopts frame type, half sealed type and complete sealed type, the frame is welded with high grade quality shape steel, the intensity is high and the weight is light; the lift of hydraulic pressure system can be used in car transportation business, picking up either light truck, light bus and etc.

Considering different customers' requirements from different regions are various, we can't outlet all the parameter of our car carrier trailers. Below is the specification of one of our featuring car carrier trialer. We can adjust the parameter according to your requirement.

Specification
Name

double axle single tyre car carrier trailer

Model

BJQ9162TCL

Overall dimension

19500 * 2500 * 3470mm

Loading capacity

7-10 cars

Axle

13T x 2

Suspension

spring belt 90 *16*7

Tyre

385/65 R22.5

Disc wheel

suitable with tyres

Kingpin

2' '

Landing gear

double speed

Hydraulic system

upper platform consists of two parts

Spare tyre carrier (winch type)

2sets

Brake system

twin line air brake

Electrical system

voltage 24V, 7pin socket

Tool box

1set

Water bank

1set

Surface process

all steel surfaces are sandblasted.

Printing

base coating + surface painting. Color of customer's choice

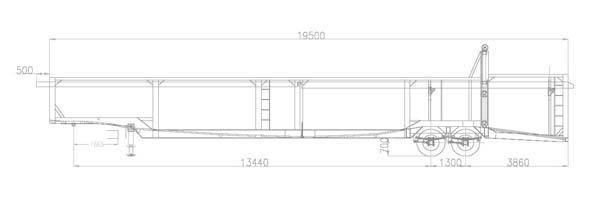

Car carrier drawing

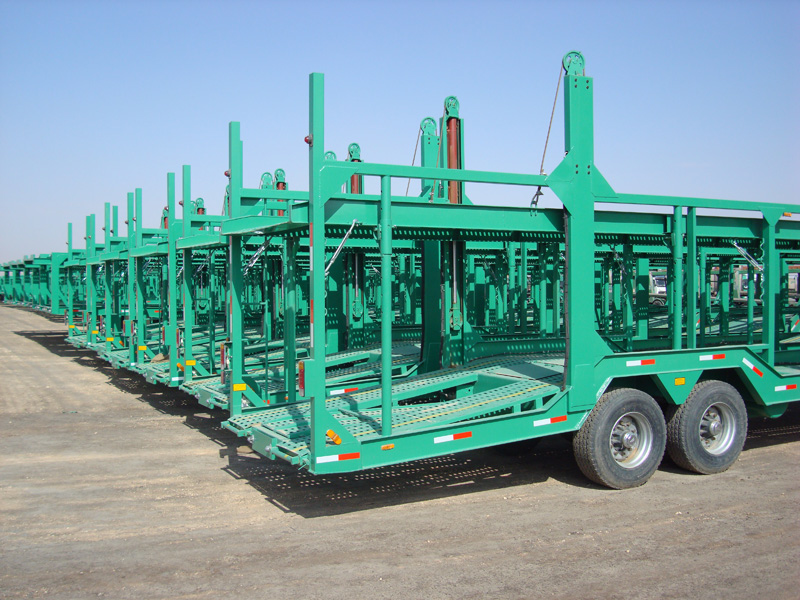

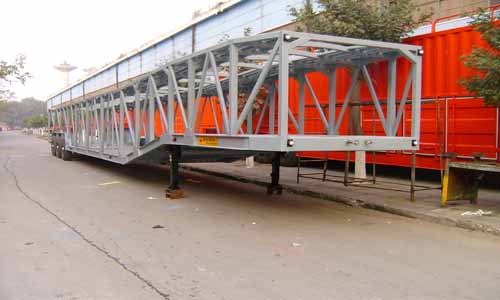

More CLIMA Car Carrier

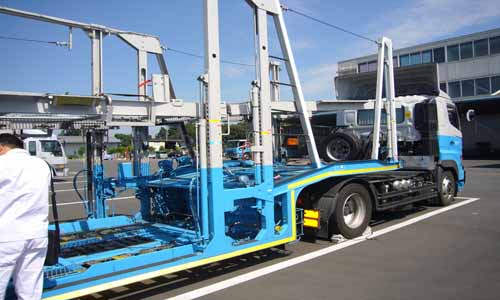

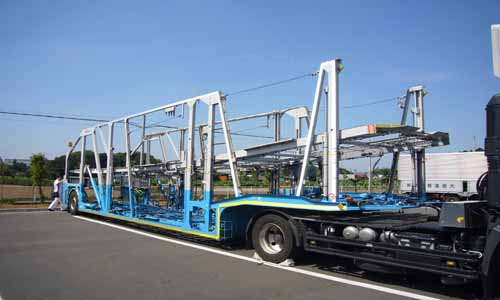

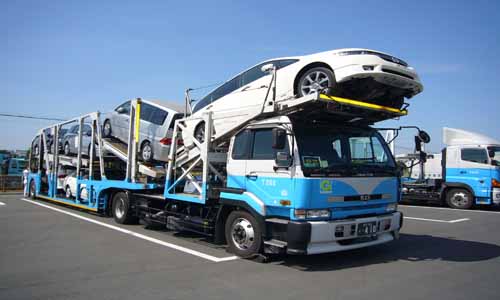

Car Carrier for Japan

Car Carrier for Russia
Car Carrier for Australia

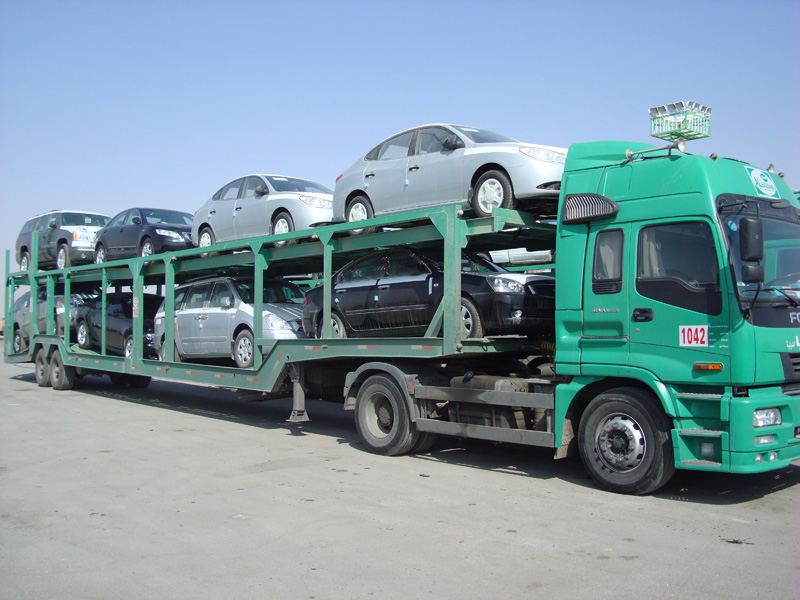

Car Carrier for Saudi Arabia
