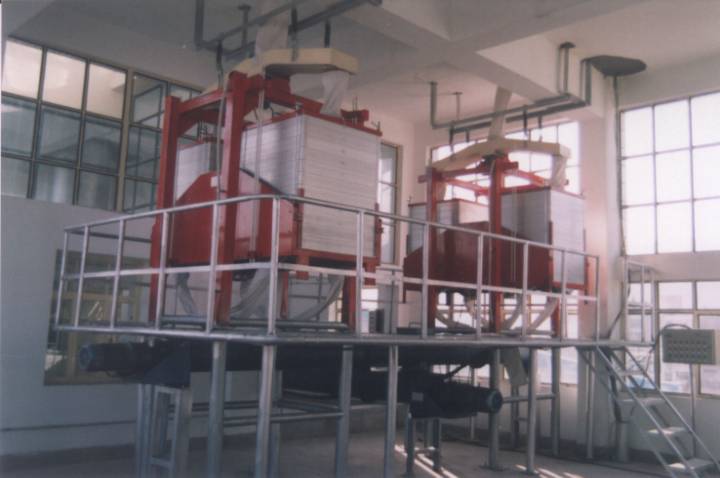

Cassava starch processing machinery

cassava starch processing machienry, cassava starch processing machinery,cassava starch, tapioca starch, cassava starch processing equipment, cassava starch processing machienry,cassava starch processing machine, cassava starch, tapioca starch[08-12-25 13:43:06]

Cassava is an important source of edible amylum, especially in regions in Afirca and other place. And cassava can be engaged in the manufacting of cassava starch, cassava flour, cassava pellet, cassava juice, cassava chips, etc. CLIMA is able to help entrepreneur around the world building their cassava starch processing plant. Our service including project execution, profit analyse, processing facilities and equipments and more. The advanced technique in China and much experience is the very important foundation of our success.

For more information about our cassava starch processing machine, please logon to our special website: www.cassavastarch.org.cn

Data below are based on our previous successful projects, we can adjust the specification according to your requirement.

Technical flow chart

Washing & crushing section

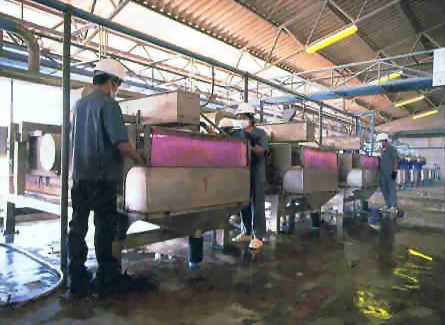

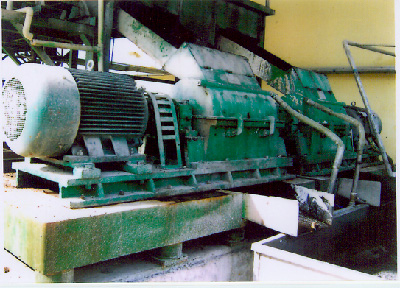

Swiftly HammerType Crusher	Parallel Conveyer	Cassava Starch Washing Machine

Washing & Crushing Section
Equipment Required
Cassava tubers discharger	Parallel conveyer	Elevator conveyor
Mud remove barker	First time cleaning machine	Second time fine cleaning machine
Coarse crusher	Swiftly hammer type crusher	80TNT-30 Pulp tank
Crusher floating seat	Control cabinet	Accessorial bracket for washer

Screening section

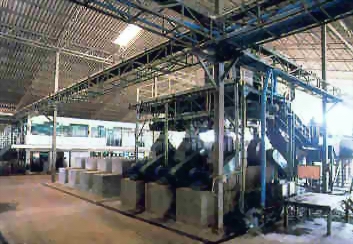

High Efficiency Starch Sifter	Cassava Starch Separator	Cassava Starch Sifter

Screening Section
Equipment Required
First grade Vertical screen	Second grade vertical screen	First grade stainless pulp residue tank ￠ 1.8
Third grade stainless pulp residue tank ￠ 1.8	Second grade stainless Pulp residue tank ￠ 1.8	Residue Presser
Fine screen	Pulper crusher	Crusher waste water tank
High pressure cleaing bump	80IND-30 stainless Pulp residue tank ￠ 1.8	Pulp stainless pulp tank with mixer
Control cabinet	Pulp distrubting pipes system	Stainless Pulp residue pump
Screening pipeline

Concentrating section

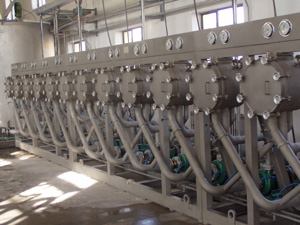

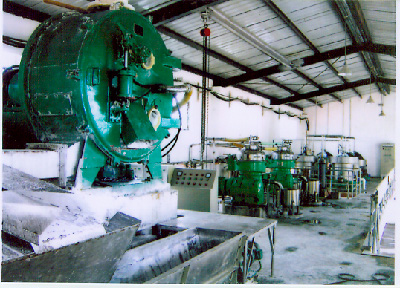

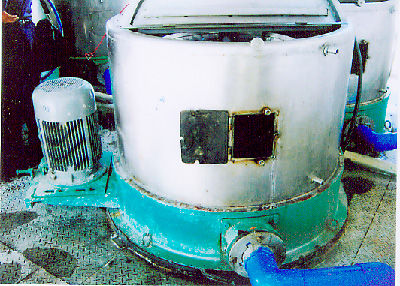

Starch Hydrocyclone	Cassava Starch Vertical Centrifual	Scraping Cutter Centrifugal

Concentrating Section
Equipment Required
First grade Vertical screen HIGH-level dense Pulp tank ￠ 1.8(including mixer)	20 o dense Pulp tank ￠ 1.8(including mixer)	Elevator conveyor8 odiluted Pulp tank ￠ 1.8(including mixer)
First grade stainless concentrating separator	Scrape used water tank	80IND-20 stainless Pulp pump
70 sand removing device	Scraper centrifugal	Fittings of Dishing type centrifugal

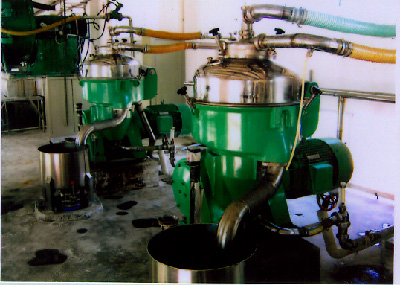

Control cabinet	Dishing type centrifugal	Scrape sliding seat

Drying section

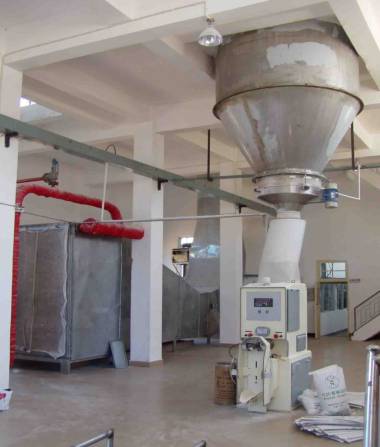

Automatic Package Machine	Air Flow Dryer	Cassava Starch Belt Conveyor

Drying Section
Equipment Required
1.0 ton/h negative pressure dryer	Air cooling system	Belt conveyor
Finished product screen	Packaging machine	Boilers
Scale

After saling Cassava starch processing machinery, if necessary, We will send one or two engineers to set up and commissioning of the Cassava starch processing machinery until it running in normal state. Druing the time your workers who will operate the Cassava starch processing machinery will be trained.
