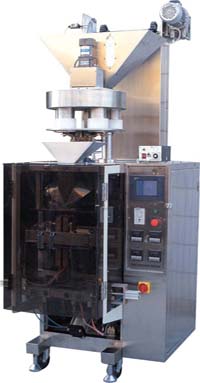

Salt Packaging Machine

Salt packaging machine, granulation packaging machine, [08-12-11 22:54:39]

CLIMA salt packaging machine is a fully automatic salt packaging machine. All the procedure of bag forming, filling, sealing and cutting is controlled by an innne microcomputer, which is suitable for packaging of different products. This product is also suitable for packing every kind of powder or granular type material of drink, food, tea, salt, soda, washing powder, flour, sugar and so on. It is a necessary packing machine for medicine, chemical industry and grain trades. It is specially suitable for salt fixed quantity package.

The data below are only for customers' reference, we can adjust the specification according to your requirements.

Applications：

It is suitable for automatic packing of granule products of foodstuffs, medicines, chemicals etc. Such like expand food, dried piece, peanut, popcorn, rice, wheat flake, granulated sugar, salt.

Capacity(bags/min)	20-60
Filling Range （ ml ）：	150-1000
Bag Size （ mm ）：	L:80-1000 W:50-200
Film Thickness （ mm ）	0.05-0.08
Air Consumption ：	0.7Mpa 300L/min
Power （ W ）：	2500
Net Weight （ Kg ）：	460
Source Voltage ：	220V/50HZ
Packing Material ：	OPP/CPP 、 CPP/PE and other types of heatable sealing materials, the form of material shall be by roller, out dia. : ≤ 400 ， inner dia:75mm.
Overall Dimension ：	730×1000×1695mm(L×W×H)
Packing Dimension ：	1220×1100×2800mm(L×W×H)

Functions:

All the works of feeding, bag-making, measuring, filling, sealing, cutting, counting, date printing, temperature control and output of finished products can be done automatically.

Features:

A、 Adopts of PLC control, the operations and features of data(filling and length of bags) set up are performed by touching interface of machine, and control system can optimizes all actions automatically so as to obtain the best packing speed.
B、 Adopts intelligent photoelectric tracking system with accurate trademark position.
C、 Double ways intelligent temperature control for sealing.
D、 Neckline form bag making device guarantee to make the bags stiff and neat.
E、 Measuring by volume.

Options:

Ribbon printing device, Air pump, Elevator, Conveyor, Nitrogen making machine, Transducer and Electric scale.

After saling salt packaging machine, if necessary, We will send one or two engineers to set up and commissioning of the salt packaging machine until it running in normal state. Druing the time your workers who will operate the salt packaging machine will be trained.
